Oil Lubricated Rotary Vane Pumps
The lubricated rotary vane vacuum pumps are used when the intake flow may contain moisture, or when a better final pressure is required.​These pumps may run continuously within certain pressure ranges, or be connected to containers to be emptied, whose volume is appropriately sized for the pump flow rate. Long-term use at atmospheric pressure is not recommended.The lubrification allows these pumps to intake water vapour. To avoid condensation of the water vapour, the lubricated rotary vane vacuum pumps are equipped with gas ballast, a system that introduces air in the compression stage and changes the vapour saturation pressure thus avoiding the condensation. In the WR pump version, the gas ballast system is improved and reinforced.
LC 2
Nominal Capacity: 1.5 - 2.8 CFM
LC 2 lubricated rotary vane vacuum pumps have limited dimensions and moderate noise level. The LC 2 pumps are adapted for the evacuation of small sealed containers. Only the LC 2 vacuum continues between a pressure of 500 and 10 mbar (Abs.).
Main application fields: vacuum packing machines; surgical extraction for dentistry and hospitals; mixing and dosage of resin for dentistry; silk screen printing machines; automatic feeder machines for book-binding; wood presses; drilling machines for use in the construction industry.

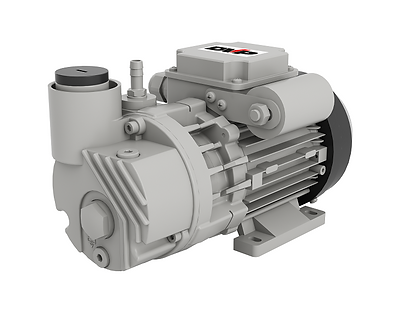

LC 4
Nominal Capacity: 1.5 - 2.8 CFM
LC 4 lubricated rotary vane vacuum pumps have limited dimensions and moderate noise level. The LC 4 pumps are adapted for the evacuation of small sealed containers.
Main application fields: vacuum packing machines; surgical extraction for dentistry and hospitals; mixing and dosage of resin for dentistry; silk screen printing machines; automatic feeder machines for book-binding; wood presses; drilling machines for use in the construction industry.
LC 8
Nominal Capacity: 5.3 CFM
The limited dimensions and the low final pressure (Abs.) attainable are the main features of LC 8 lubricated rotary vane vacuum pump. An effective damping and recovery system in-built in the tank prevents any oil vapors at the exhaust. Moreover, a special sealing device prevents suck-back, should pump be stopped under vacuum. The intake can also be adjusted by the user, thanks to a special fitting.
Main application fields: filling and sealing machines, food packing and food processing, and production of PET containers.
LC 12
Nominal Capacity: 8.2 CFM
The limited dimensions and the low final pressure (Abs.) attainable are the main features of LC 12 lubricated rotary vane vacuum pump. An effective damping and recovery system in-built in the tank prevents any oil vapors at the exhaust. Moreover, a special sealing device prevents suck-back, should pump be stopped under vacuum. The intake can also be adjusted by the user, thanks to a special fitting.
Main application fields: filling and sealing machines, food packing and food processing, and production of PET containers.
LC 12WR
Nominal Capacity: 8.2 CFM
LC 12WR lubricated rotary vane vacuum pump has the same features as LC 12 pump, but it is equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use LC 12WR in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used. The LC 12WR is suitable for continuous suction within a pressure range from 400 to 50 mbar (Abs.).
Main application fields: vacuum packing machines; precious metal vacuum casting machines; dental field; graphic and paper industry; CNC marble and glass machines; vacuum lifting machines; garage equipment.

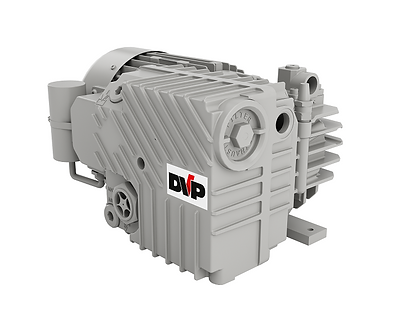

LC 20
Nominal Capacity: 14.1 - 17.1 CFM
Compact design, low noise level, simple oil check and refill and ease of maintenance, are the main features of LC 20 and LC 25 lubricated rotary vane vacuum pumps. The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapors at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stop under vacuum. The LC 20 is suitable for continuous operation within a pressure range from 400 to 2 mbar (Abs.) and LC 25 from 400 to 0,5 mbar (Abs.).
Main application fields: vacuum packaging machines; sack filling machines; vacuum precious metal casting machines; dental field; graphic and paper industry; CNC marble and glass machines; vacuum lifting machines; garage equipment.
LC 25
Nominal Capacity: 14.1 - 17.1 CFM
Compact design, low noise level, simple oil check and refill and ease of maintenance, are the main features of LC 20 and LC 25 lubricated rotary vane vacuum pumps. The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapors at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stop under vacuum. The LC 20 is suitable for continuous operation within a pressure range from 400 to 2 mbar (Abs.) and LC 25 from 400 to 0,5 mbar (Abs.).
Main application fields: vacuum packaging machines; sack filling machines; vacuum precious metal casting machines; dental field; graphic and paper industry; CNC marble and glass machines; vacuum lifting machines; garage equipment.
LC 25WR
Nominal Capacity: 17.1 CFM
LC 25WR lubricated rotary vane vacuum pump has the same features as LC 25 pump, but it is equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use LC 25WR in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used. The LC 25WR is suitable for continuous suction within a pressure range from 400 to 4 mbar (Abs.).
Main application fields: vacuum packing machines; precious metal vacuum casting machines; dental field; graphic and paper industry; CNC marble and glass machines; vacuum lifting machines; garage equipment.
LC 40
Nominal Capacity: 28.3 - 42.4 CFM
Compact design, low noise level, ease of oil check and refill and simplified maintenance operation, are the main features of LC 40 and LC 60 lubricated rotary vane vacuum pumps. The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapors at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stops under vacuum. Only hazardous parts have been housed in order to improve both the cooling and the appearance of the pumps.
Main application fields: metal polishing machines, vacuum welding of precious metals, packing machines, glass and marble lifting systems, vacuum bottling machines, packaging machines, loading and paper feeding, labelling, equipment for suction handling, automatic machines, machines for vacuum packed food-processing and mixing, vacuum thermal moulding, garage equipment, centralised vacuum plant installations.
LC 60
Nominal Capacity: 28.3 - 42.4 CFM
Compact design, low noise level, ease of oil check and refill and simplified maintenance operation, are the main features of LC 40 and LC 60 lubricated rotary vane vacuum pumps. The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapors at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stops under vacuum. Only hazardous parts have been housed in order to improve both the cooling and the appearance of the pumps.
Main application fields: metal polishing machines, vacuum welding of precious metals, packing machines, glass and marble lifting systems, vacuum bottling machines, packaging machines, loading and paper feeding, labelling, equipment for suction handling, automatic machines, machines for vacuum packed food-processing and mixing, vacuum thermal moulding, garage equipment, centralised vacuum plant installations.
LC 40WR
Nominal Capacity: 74.8 - 106.6 CFM
LC 40WR and LC 60WR lubricated rotary vane vacuum pumps have the same features as LC 40 and LC 60 pumps, but they are equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use LC 40WR and LC 60WR in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used.
Main application fields: metal washing machines.
LC 60WR
Nominal Capacity: 74.8 - 106.6 CFM
LC 40WR and LC 60WR lubricated rotary vane vacuum pumps have the same features as LC 40 and LC 60 pumps, but they are equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use LC 40WR and LC 60WR in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used.
Main application fields: metal washing machines.
LC 106
Nominal Capacity: 74.8 - 106.6 CFM
Compact design, low noise level, ease of oil check and refill and simplified maintenance operation, are the main features of LC 106 and LC 151 lubricated rotary vane vacuum pumps. The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapors at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stops under vacuum. The motor-pump connection is via a flexible drive coupling.
Main application fields: vacuum packaging machines; bag filling machines; precious metal vacuum casting machines; dental field; printing and paper industry; CNC marble and glass machines; vacuum lifting machines; workshop equipment, thermal treatment furnaces.
LC 151
Nominal Capacity: 74.8 - 106.6 CFM
Compact design, low noise level, ease of oil check and refill and simplified maintenance operation, are the main features of LC 106 and LC 151 lubricated rotary vane vacuum pumps. The damping and recovery system, equipped with a by-pass, together with the new float type oil recovery valve, ensures the absence of oil vapors at the outlet. Moreover, a sealing device prevents the oil from being sucked back should the pump stops under vacuum. The motor-pump connection is via a flexible drive coupling.
Main application fields: vacuum packaging machines; bag filling machines; precious metal vacuum casting machines; dental field; printing and paper industry; CNC marble and glass machines; vacuum lifting machines; workshop equipment, thermal treatment furnaces.
LC 106 Kzero
.png)
Nominal Capacity: 74.8 - 106.6 CFM
The new Kzero series is the best solution to offer lower operating temperature in those sectors where working environments reach temperatures of 40°C or higher. The LC 106 Kzero and LC 151 Kzero lubricated rotary vane vacuum pumps are designed with a totally renovated body pump. The use of the check valve rubber instead of the plate silencer gives greater strength and less deterioration in contact with oil and solvent. The insertion of the fan guarantees heat reduction as well as optimal oil maintenance.
Main application fields: electronic transformers drying; centralized medical units; ceramic extruder and degassers; metal washers and metal treatment machines.
LC 151 Kzero
Nominal Capacity: 74.8 - 106.6 CFM
The new Kzero series is the best solution to offer lower operating temperature in those sectors where working environments reach temperatures of 40°C or higher. The LC 106 Kzero and LC 151 Kzero lubricated rotary vane vacuum pumps are designed with a totally renovated body pump. The use of the check valve rubber instead of the plate silencer gives greater strength and less deterioration in contact with oil and solvent. The insertion of the fan guarantees heat reduction as well as optimal oil maintenance.
Main application fields: electronic transformers drying; centralized medical units; ceramic extruder and degassers; metal washers and metal treatment machines.
LC 106WR
Nominal Capacity: 74.8 - 106.6 CFM
LC 106WR and LC 151WR lubricated rotary vane vacuum pumps have the same features as LC 106 and LC 151 pumps, but they are equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use these pumps in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used. The LC 106WR and LC 151WR are suitable for continuous suction within a pressure range from 400 to 4 mbar (Abs.).
Main application fields: vacuum packaging machines; bag filling machines; dental field; printing and paper industry; CNC marble and glass machines; vacuum lifting machines; workshop equipment.
LC 151WR
Nominal Capacity: 74.8 - 106.6 CFM
LC 106WR and LC 151WR lubricated rotary vane vacuum pumps have the same features as LC 106 and LC 151 pumps, but they are equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use these pumps in applications where very high concentrations of water vapour might be present, and where standard pumps could not be used. The LC 106WR and LC 151WR are suitable for continuous suction within a pressure range from 400 to 4 mbar (Abs.).
Main application fields: vacuum packaging machines; bag filling machines; dental field; printing and paper industry; CNC marble and glass machines; vacuum lifting machines; workshop equipment.
LC 205
Nominal Capacity: 144.3 - 215 CFM
The LC 205 and LC 305 oil-lubricated rotary vane vacuum pumps are upgraded pumps in design and performance. Among the main innovations, greater efficiency in the process of separating oil from air ensures a smokeless flow of exhaust air. Low noise is enhanced, as well as energy efficiency, thanks to the IE3 efficiency class motors. The gas ballast has a manual override valve, designed to achieve a higher vacuum level when required. The ease of maintenance has also been improved: the oil separator filter is unique and can be replaced in a few simple steps.
Main application fields: food processing and packaging; non-food packaging.
LC 305
Nominal Capacity: 144.3 - 215 CFM
The LC 205 and LC 305 oil-lubricated rotary vane vacuum pumps are upgraded pumps in design and performance. Among the main innovations, greater efficiency in the process of separating oil from air ensures a smokeless flow of exhaust air. Low noise is enhanced, as well as energy efficiency, thanks to the IE3 efficiency class motors. The gas ballast has a manual override valve, designed to achieve a higher vacuum level when required. The ease of maintenance has also been improved: the oil separator filter is unique and can be replaced in a few simple steps.
Main application fields: food processing and packaging; non-food packaging.
LC 205HV
Nominal Capacity: 144.3 - 215 CFM
The new LC 205 and LC 305 lubricated vane vacuum pumps are available in a special HV version, suitable for packaging lines where the pump is located inside boxes. The direction of the cooling air outlet flow is in fact downwards, so the hot air does not stagnate inside the housing. In the LC 205HV and LC 305HV versions, the new suction fitting has a double connection to the operating line, both frontally and vertically.
food packaging.
LC 305HV
Nominal Capacity: 144.3 - 215 CFM
The new LC 205 and LC 305 lubricated vane vacuum pumps are available in a special HV version, suitable for packaging lines where the pump is located inside boxes. The direction of the cooling air outlet flow is in fact downwards, so the hot air does not stagnate inside the housing. In the LC 205HV and LC 305HV versions, the new suction fitting has a double connection to the operating line, both frontally and vertically.
food packaging.
LC 205 Kzero
Nominal Capacity: 144.3 - 215 CFM
The new LC 205 Kzero and LC 305 Kzero series of lubricated rotary vane vacuum pumps is specially designed for metal washing machines, because it is highly resistant to the solvents that oil comes into contact with. In fact, the special LC 205 Kzero and LC 305 Kzero pumps are equipped with FKM check valve rubbers giving greater strength and less deterioration in contact with oil and solvent. The supplied oil is also highly compatible with the solvents commonly found in metal washing machines.
metal washing machines.
LC 305Kzero
Nominal Capacity: 144.3 - 215 CFM
The new LC 205 Kzero and LC 305 Kzero series of lubricated rotary vane vacuum pumps is specially designed for metal washing machines, because it is highly resistant to the solvents that oil comes into contact with. In fact, the special LC 205 Kzero and LC 305 Kzero pumps are equipped with FKM check valve rubbers giving greater strength and less deterioration in contact with oil and solvent. The supplied oil is also highly compatible with the solvents commonly found in metal washing machines.
metal washing machines.
